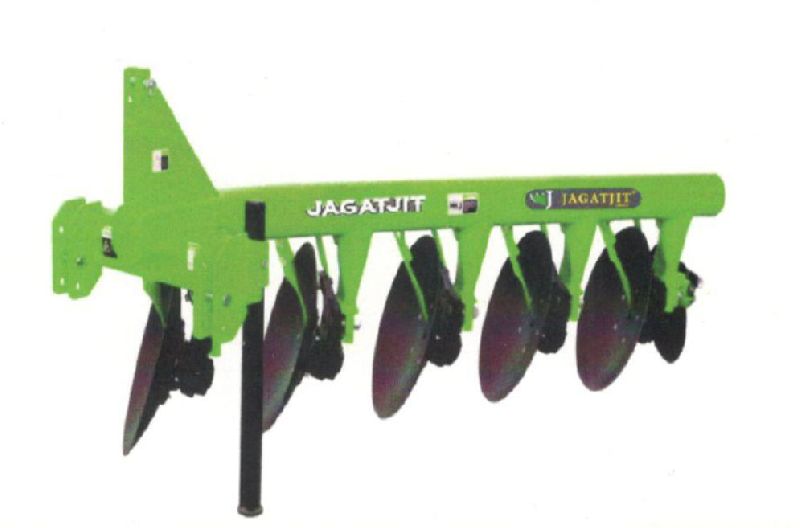

Mounted Disc Plough

Business Type

Manufacturer, Exporter, Supplier

Preferred Buyer From

Location

Worldwide

FEATURES & BENEFITS

In conformity with the soil conditions it is being produced with 2-3-4- and 5 bottons with an option for extra kit for converting it ti extra-botton plough.
It is directly mounted to the tractor.
Extra heavy-duty pipe frame has high trash clearance allowing the plough to operate under heavy crop residue.
The disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing.
It used to open the new fields and to process the stony areas.
It can be used easily at rocky and rooted areas.
It is specially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.

Technical Specification

Description	JGMDP-2	JGMDP-3	JGMDP-4	JGMDP-5
Frame(mm)	Tubular Frame(Seamless Pipe O.D168(12~14 Thickness)
Axle Type	Forged Spindle CNC Machined
No. of Disc	2	3	4	5
Type of Disc/Blade	Boron Steel/High Carbon Steel
Disc Diameter(mm)	660 & Thickness6
Disc Spacing(mm)	570(23 Inch Approx)
Bearing Hubs	2	3	4	5
Mounted Category	CAT-2
Width of Cut(mm Approx)	500~550	875~925	1150~1200	1575~1625
Weight(Kg. Approx)	310	415	520	620
Tractor Power(HP)	50~60	65~80	85~100	105~125
Container Loadability per 40'	80	60	40	35
